Aluminum Plate

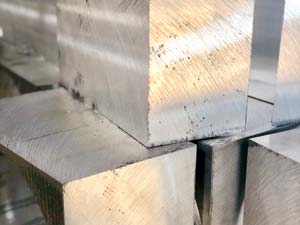

6061-T651 Aluminum Plate

6061 wrought tooling plate is an extremely versatile 6000 series aluminum alloy. It is also one of the most common aluminum alloys used in machining and fabrication. High weldability (Tig & Mig). 6061 is one of the best aluminum alloys for anodizing and coatings. Decent formability, medium strength alloy. 6061 is also heat-treatable.

6061-T561 Aluminum Aluminum Plate

• Thicknesses: 1/4", 5/16", 3/8", 1/2", 5/8", 3/4", 7/8", 1.00", 1.125", 1.25", 1.50", 1.625", 1.75", 2.00", 2.25", 2.50", 2.75", 3.00" (thicknesses up to 10" inches available)

• Plate Widths: 48.5", 60.5", 72.5"

• Plate Lengths: 120.5", 144.5"

• ASTM B209, ASME SB-209, AMS-QQ-A-250/11, AMS 4027

5052-H32 Aluminum Plate

5052 aluminum plate and sheet are considered marine grade aluminums—as is consistent with most 5000 series aluminum alloys. Great for forming, rolling, and cutting. Superb corrosion resistance. Low density and light weight. 5052 is often used for electrical cabinets, pilot houses, and paneling.

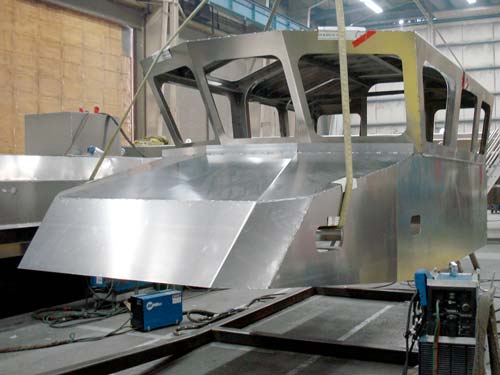

Aluminum 5052 Pilot House Boat

• Thicknesses: 1/4", 3/8", 1/2"

• Plate Widths: 48", 60", 72", 96"

• Plate Lengths: 96", 120", 144", 240"

• ASTM B209, ASME SB-209, AMS-QQ-A-250/8, AMS 4016

Mic 6™ Aluminum Cast Plate

Mic 6™ aluminum cast plate is renowned for its flatness, strength, and smooth finish. Similar to 7000 series aluminums in hardness and manufactured by Alcoa™, Mic 6™ continues to be a favorite alloy of machinists due to its uses in tooling and machine setups. Optimum for high speed machining. Mic 6™ Aluminum Cast Plate is precision ground on both sides to a thickness tolerance of +/-.005" (20 RMS).

Mic6 Aluminum Cast Plate

• Thicknesses: 1/4", 5/16", 3/8", 1/2", 5/8", 3/4", 1.00", 1.25", 1.50", 2.00"

• Plate Widths: 48.5", 60.5"

• Plate Length: 144"

7075-T651 Aluminum Plate

7075 wrought tooling plate is one of the strongest aluminum alloys manufactured today. Commonly used in aircraft structures and light-weight high-strength applications. 7075 lends itself well to machining and milling work. With similar chemical characteristics to 2024 aluminum, but available in thicker plate sizes.

7075 Aluminum Plate for Aerospace Applications

• Thicknesses:1/4", 3/8", 1/2", 5/8", 3/4", 1.00", 1.25", 1.50", 1.75", 2.00", 2.25", 2.50", 3.00" (thicknesses up to 6" available)

• Plate Widths: 48.5", 60.5"

• Plate Length: 144.6"

• ASTM B209,ASME SB-209, AMS-QQ-A-250/24, AMS 4045

Non-Stock Available Aluminum Alloys

3003 tread-plate, K100-S™ cast plate, 5083, 5086

6" Thick 6061 Aluminum Plate

4" Thick Aluminum 6061 Plate

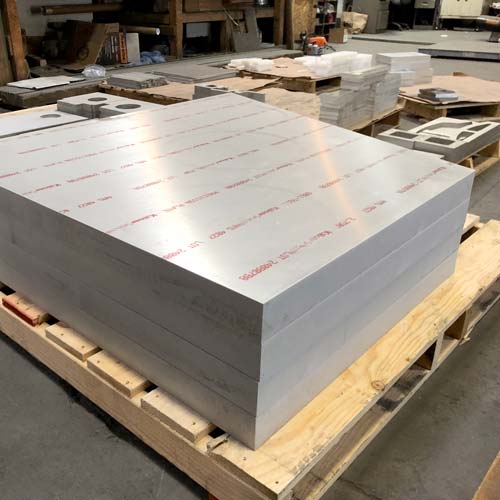

Large Aluminum Plates
