Stainless Steel Plate

304 / 304L Stainless Steel Plate

304 stainless steel is one of the most common commercial stainless alloys. Its uses range broadly from chemical and food machinery applications, to marine hardware and ASME Tanks and vessels. Easily cut, formed, and welded—304 is also partially magnetic.

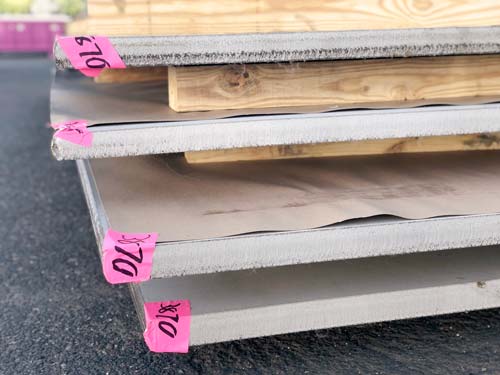

Stainless Steel Mill Plates

• Thicknesses:3/16", 1/4", 5/16", 3/8", 1/2", 5/8", 3/4", 7/8", 1.00", 1.25", 1.50", 1.75", 2.00", 2.25", 2.50", 2.75", 3.00" (thicknesses up to 6” available)

• Plate Widths: 48", 60", 72", 96", 120"

• Plate Lengths: 96", 120", 144", 240"

• ASTM / ASME S30403 / UNS S30403

316 / 316L Stainless Steel Plate

316 stainless steel is one of the most corrosion-resistant stainless alloys available. It also has a slightly higher nickel content than 304, along with a higher molybdenum content. 316 is commonly used in laboratory and nuclear applications, as well as salt-water applications. Easily cut, formed, or welded.

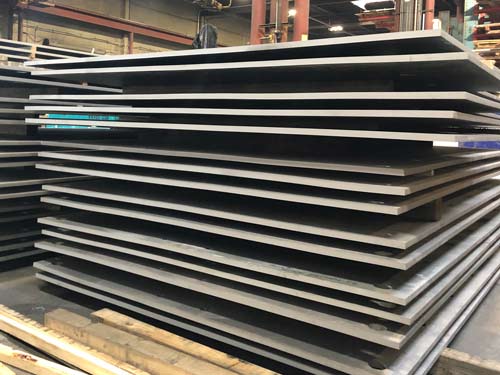

316 Stainless Steel Plate IRC

• Thicknesses: 3/16", 1/4", 5/16", 3/8", 1/2", 5/8", 3/4", 7/8", 1.00", 1.25", 1.50", 1.75", 2.00", 2.25", 2.50", 2.75", 3.00" (thicknesses up to 6" available)

• Plate Widths: 48", 60", 72", 96"

• Plate Lengths: 96", 120", 144", 240"

• ASTM / ASME UNS S31600 / S31603

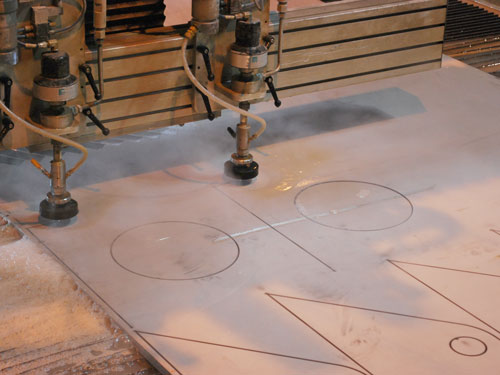

17-4 Stainless Steel Plate

17-4 / 17-4 PH stainless steel is often used in machinery operated in high-temp or high-wear, and corrosive environments. Easily welded and heat-treated, 17-4 can be a very useful alloy for all sorts of applications such as: pumps, valves, and steel rolling mill equipment.

17-4 Stainless Steel Plate

• Thicknesses: 3/16", 1/4", 3/8", 1/2" 5/8", 3/4", 1.00", 1.25", 1.50", 1.75", 2.00", 2.50", 3.00" (thicknesses up to 4" available)

• Plate Widths: 96"

• Plate Lengths: 144", 240"

• ASTM 693 / UNS S17400 / ASME SA 693

Other Available Stainless Steel Plate Alloys

410, 317L, 304H, 303, 321, 416, Prodec™

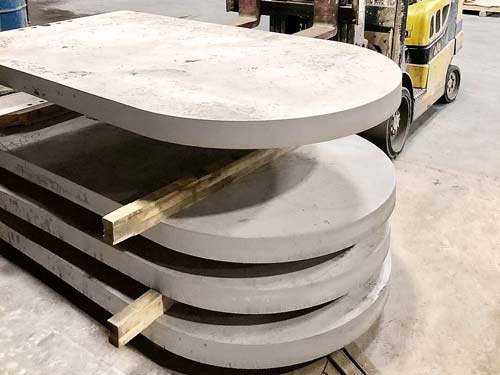

Big Stainless Steel Plates

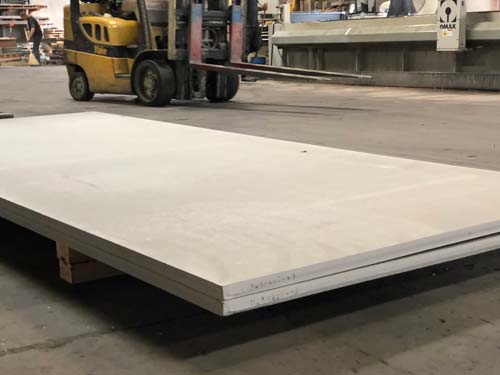

Cut-To-Size stainless 304 316

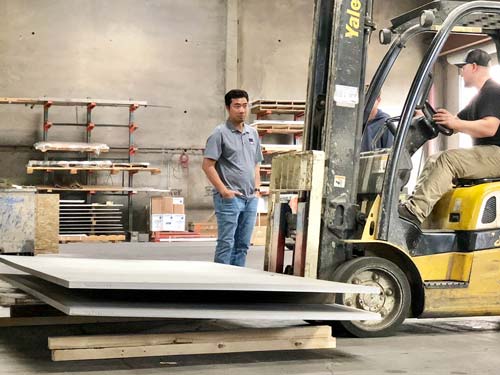

304L Stainless Mill Plate: Domestic
